PCB Anti-metal Tag P9525-35

Characteristic
•High sensitivity
•Adhensive&fixed with screw
•Protective class IP65

Application
•On metal
•Tool management
•Instrument management
•Asset Management
•Server Manager
•Warehouse Logistics Management
•Shelf & Pallet Management
•Large equipment management


Product Detail

Product Tags

parameter

Specification

Dimension:

Diameter: 95*25MM, Thickness:3.5MM

Delivery Form:

Single

Antenna Material:

Copper+Gold

Frequency:

902-928MHZ / 866-868MHZ

Adhesive:

optional

Customization:

Silk Screen Printing、 Laser Numbering、UV Inkjet Printing

IC:

NXP U8

Material:

FR-4

Color:

Black (customization available)

Working Temperature:

-20℃ to +80℃

Storage Temperature:

-20℃ to +150℃

R/W Distance

450CM(0n metal, Handheld reading device with R2000 Module)

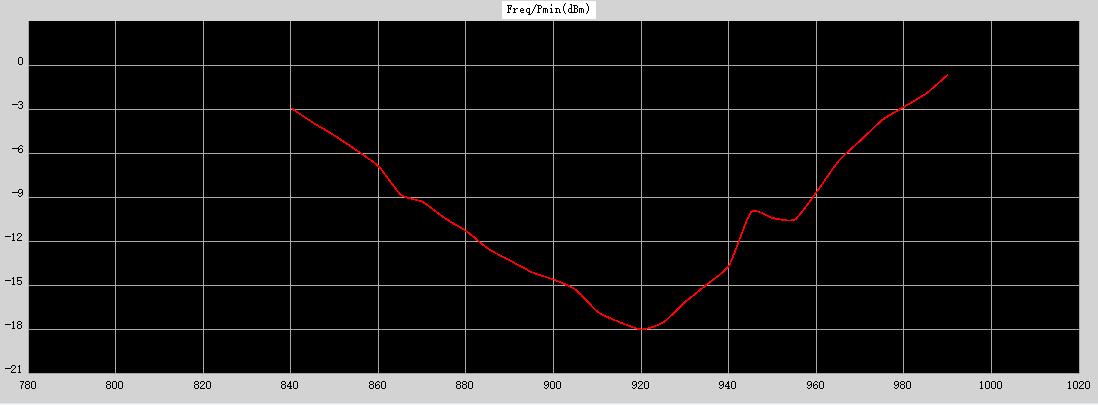

RF Performance

detail (53)
detail (54)

Certification

RoHS PASS
CE PASS

Ordering guide

P9525-35-U8 Adhesive Is Optional / IC Is Optional
