Industrial white anti-metal Tag P1604-20

Characteristic
•High sensitivity
•Adhensive &Fixed with Heat Shrink Tubing
•Protective class IP65

Application
•On metal
•Tool management
•Instrument management
•Asset Management


Product Detail

Product Tags

parameter

Specification

Dimension:

Diameter: 16*4MM, Thickness:2MM

Delivery Form:

Single

Antenna Material:

Copper+Gold

Frequency:

902-928MHZ / 866-868MHZ

Adhesive:

                                                                             optional

Customization:

Silk Screen Printing、 Laser Numbering、UV Inkjet Printing

IC:

Impinj M750

Material:

FR-4

Color:

Black (customization available)

Working Temperature:

-20℃ to +80℃

Storage Temperature:

-20℃ to +150℃

R/W Distance

80CM(0n metal, Handheld reading device with R2000 Module)

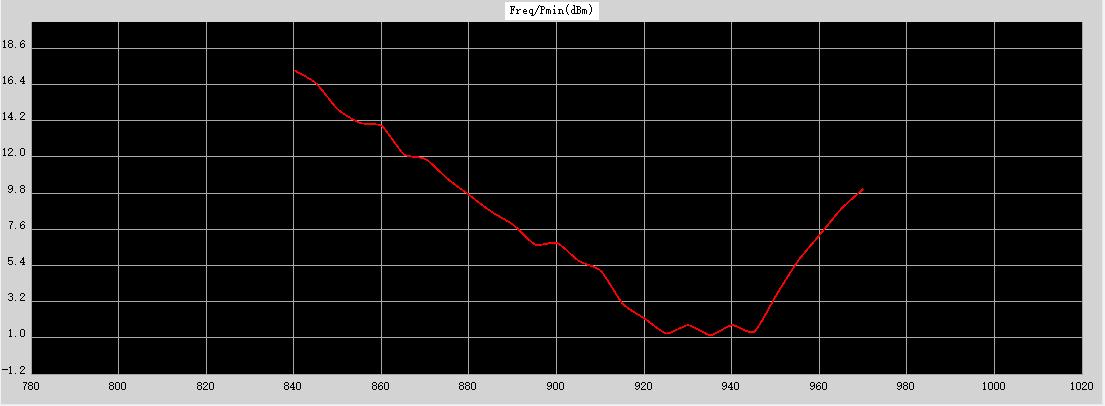

RF Performance

detail (9)
detail (10)

Certification

RoHS PASS
CE PASS

Ordering guide

P1604-20-M750 Adhesive Is Optional / IC Is Optional
